Bill of Material –

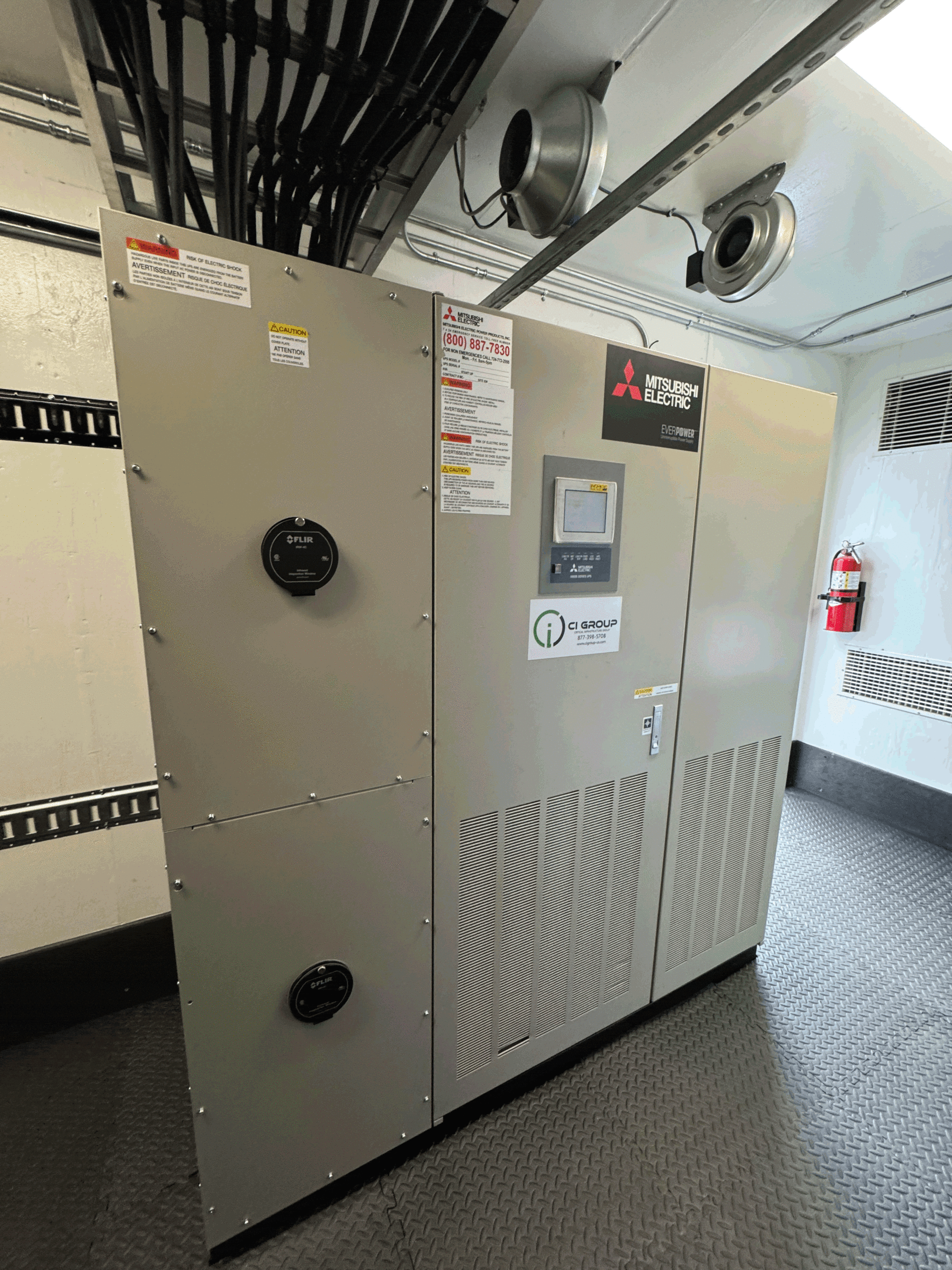

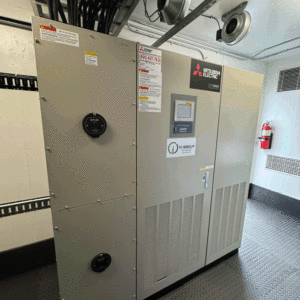

Mitsubishi 9900B-500 kVA / 500 kW –
Rating: 500 kVA / 500 kW
Input voltage: 480VAC Three Phase – 3W + Ground
Output voltage: 480/VAC – Three Phase 3W + Ground
Narada Lithium Battery Solution – 11 Minutes at full load

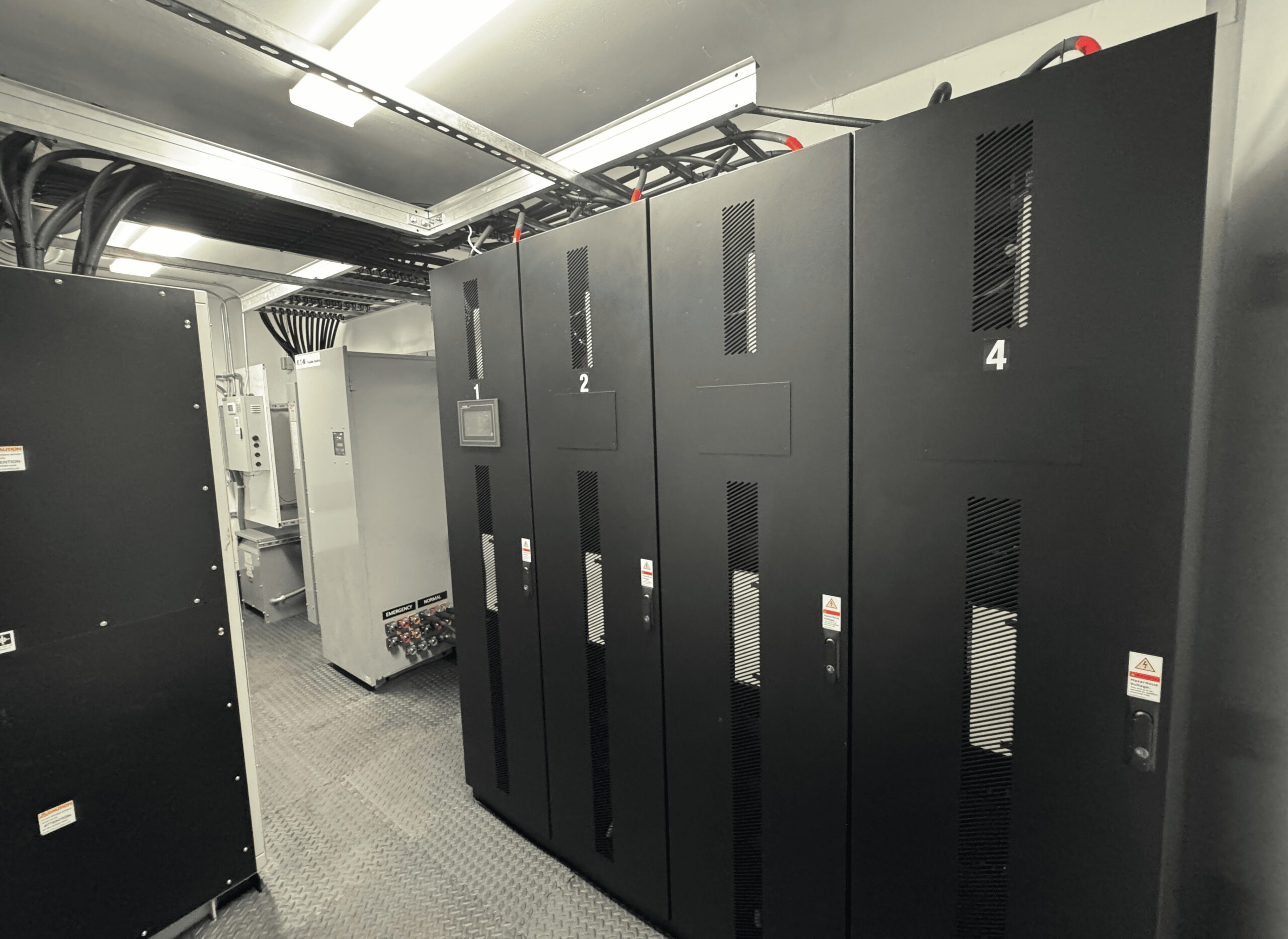

(4) MPLHP51255 – 10 Module Battery Cabinets

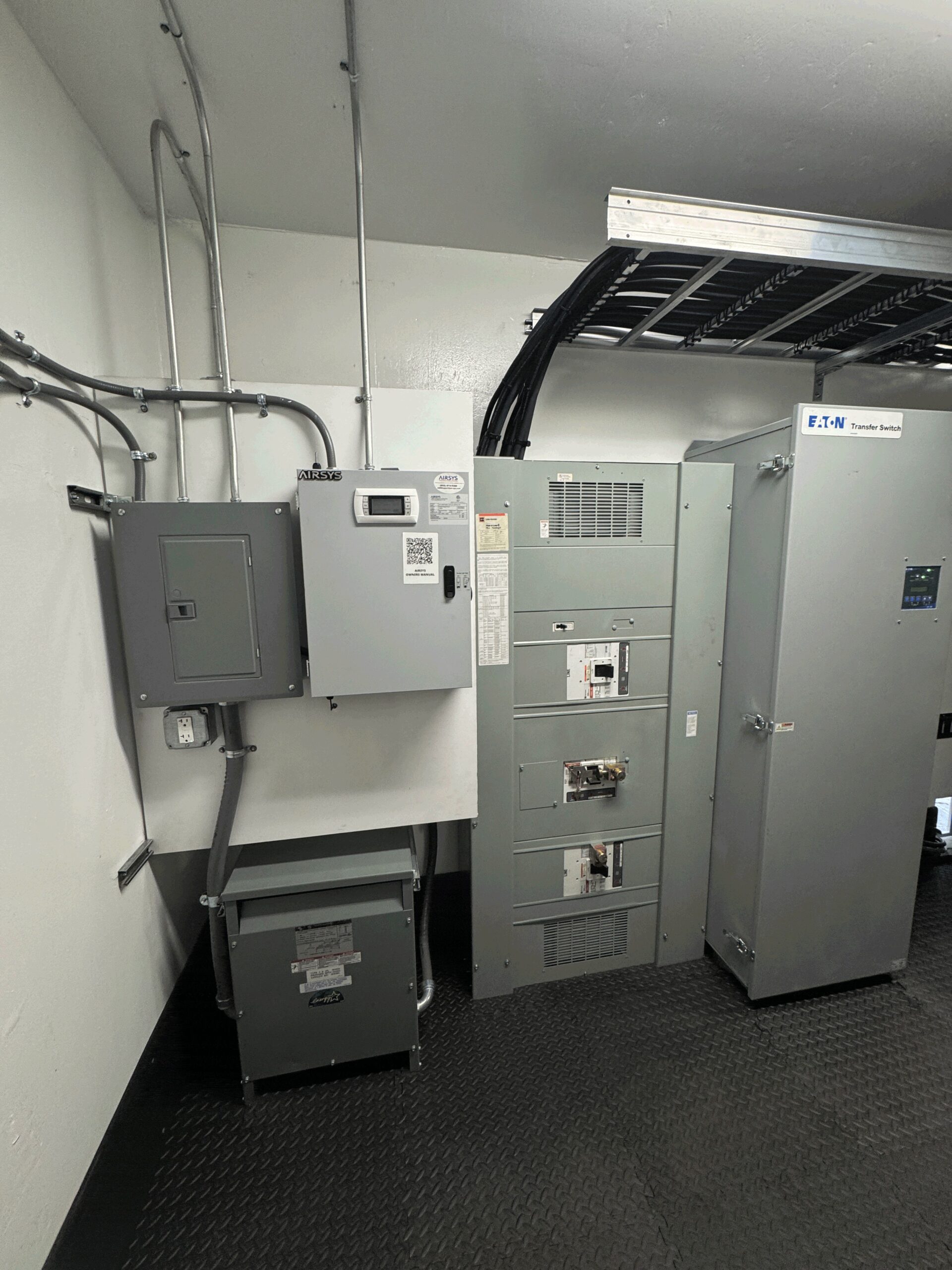

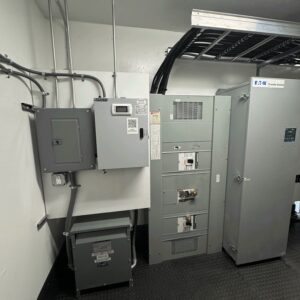

(1) Eaton Automatic Transfer Switch
Rated: 600A / 3 Pole / Open Transition
Eaton External Maintenance Bypass Switch
Rated: 800A /3 Breaker
(2) Airsys HVAC Units
Model: 11V1B3MR410AAC
(1) Square D Step Down Transformer
Rated: 30 kVA
Voltage: 480-208
(1) Eaton Low Voltage Distribution Panel
Lights / HVAC, Convenience Outlets
(1) Sensaphone Remote Monitoring
