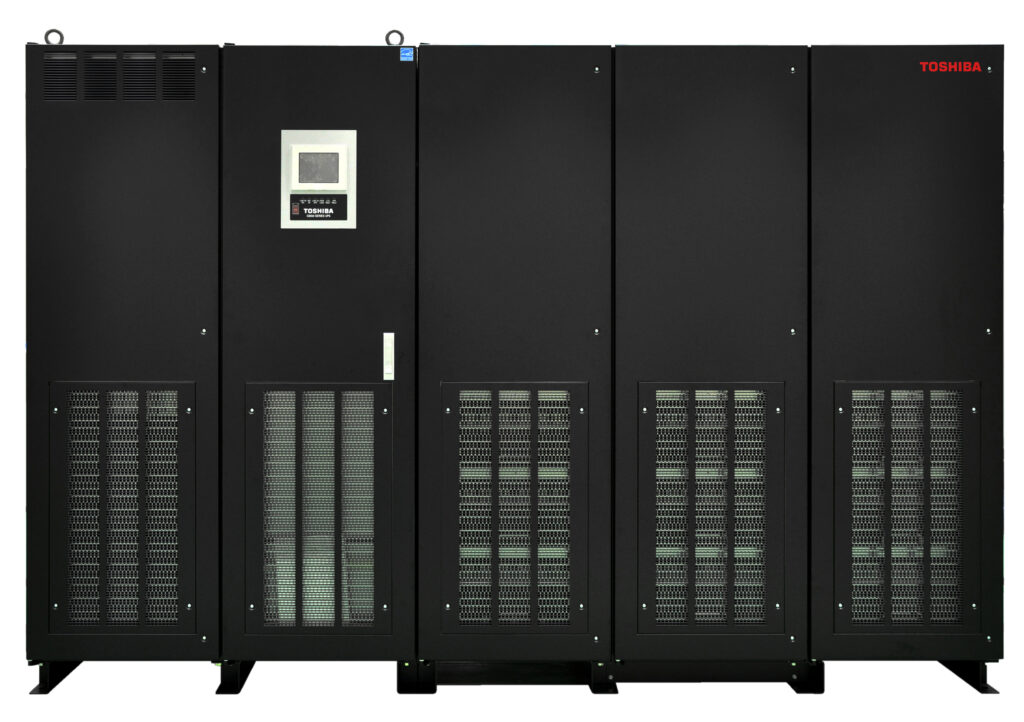

New Toshiba G9400 1200 kVA 480V-480V UPS System

Need More Information?

Fill out the form below or call and we will get in touch now.


picture_as_pdf Brochure
picture_as_pdf IO Manual
picture_as_pdf Installation and Operation Manual
picture_as_pdf Oneline

G94SH1D2MWWW1C – G9400 Series 1200KVA / 1200kW UPS – 480V, 60 Hz. 3-Ph/3-Wire Primary Input – 480V, 60 Hz. 3-Ph/3-Wire Bypass Input – Factory configured with bus bar jumpers as single input, dual input field configurable. – 480V, 60-Hz. 3-Ph/3-Wire Output – 97% efficiency VFI double conversion UPS – Single or Multi Module System Configurable (up to 6 in parallel) – 100kAIC rating – System Dimensions: 133.9″W x 35.5″D x 81″H – System Weight: 7,270lbs. G9400 1200kVA UPS Includes: – Part # G94SH1D2MWWW1C 1200kVA Control – Bypass I/O Cabinet with top, bottom, cable access – Part# G94PH1D2MWXW3R 1200kVA UPS Power Modules consisting of 3 G9400 400kVA 480V Power Modules pre-bused / for right side of Control – Bypass I/O Cabinet – Bus bars and hardware for joining Cabinets – 10″ color LCD Touch Screen Operator Interface – RemotEye 4 Network Multi-Protocol communication card – Merv 7 air filters. – Hardware for user supplied power cables to NEMA 2 hole input / output / DC bus terminals Shipping information: – Shipping Split 1 Part # G94SH1D2MWWW1C Bypass I/O Cabinet Dimension: 85″W x 44″D x 88″H – Shipping Split 1 Part # G94SH1D2MWWW1C Bypass I/O Cabinet Weight: 2,315lbs. – Shipping Split 2 Part# G94PH1D2MWXW3R Quantity of 3 UPS Power Modules Right side Dimension: 88″W x 44″D x 88″H – Shipping Split 2 Part# G94PH1D2MWXW3R Quantity of 3 UPS Power Modules Right side Weight: 5,445lbs.

Manufacturer

Toshiba

Equipment Type

UPS

Model Family

G9000

Rating (kVA)

750 kVA

Input Voltage

480

Output Voltage

480

Phase

3

Frequency

50/60 Hz

Status

In Stock
