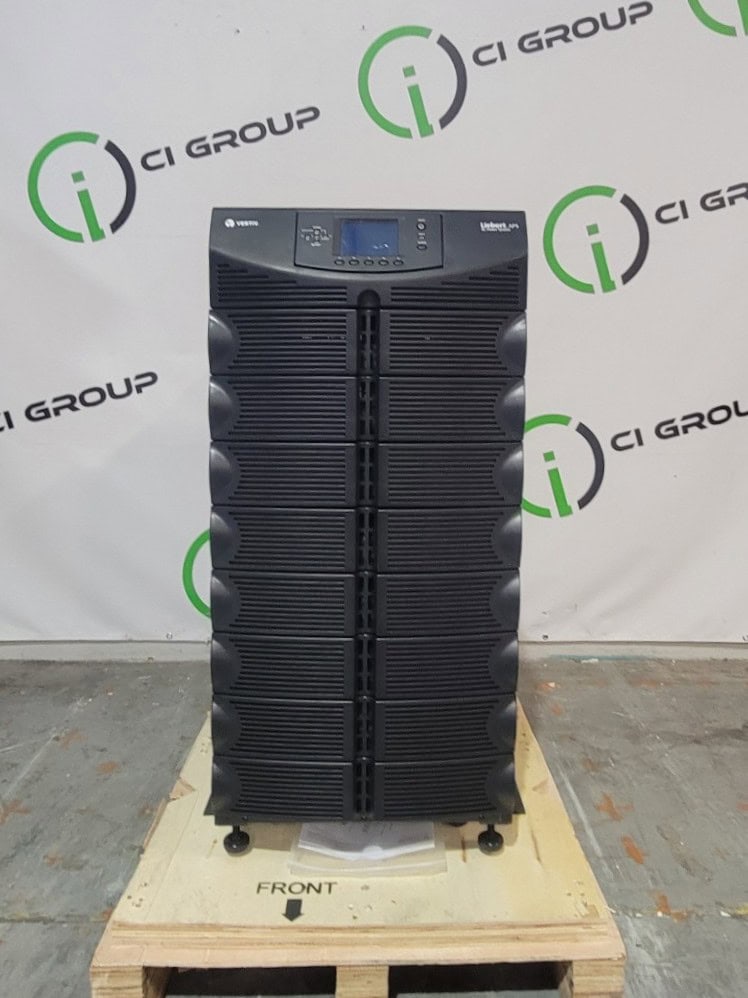

Liebert APS 20 kVA UPS System

Need More Information?

Fill out the form below or call and we will get in touch now.

picture_as_pdf Brochure

One (1) Liebert APS Model rated at 20 kVA/18.0 kW with 10 minutes backup time.
Each System is comprised of the following features/accessories:
· On-line double conversion design with a true sine wave output
· N+x parallel redundancy to provide a fault tolerant network of power protection for continuous systems availability
· Quoted model is configured Non-redundant
· Input and output noise suppression
· Main input, output, and internal maintenance breaker
· Input power factor 0.99
· 6-hour battery recharge time to 90% capacity
· Fault tolerant microprocessor-based control and monitoring
· Low voltage distortion output inverter
· Flame-retardant, Sealed valve regulated batteries
· LCD display module with mimic diagram of power flow and provides digital metering, event logging, user customize-able
set points (low battery alarm, battery test, auto-restart delay, display language)
· All modules are hot-swappable to provide maximum system flexibility and availability
· Casters and leveling feet
· WEEE, REACH, and RoHS (6 by 6) compliant
· Integral output distribution providing None outlets
· Integral output distribution providing None outlets
· Units are capable of rack mounting with optional rack mounting kit
· UPS frame is designed for maximum of 20 kVA, 208/120V, 60 Hz, L-L-N-PE
· UL 1778 4th Edition, c-UL, Listed
Optional Equipment: • (1) IntelliSlot Velocity/Life.Net Card; P/N: IS-UNITY-DP; Offers a web interface to monitor and configure the Life and
proprietary protocols for use with the Life Station, Liebert Nform and Trellis. It allows you to select and configure two of the available third party protocols – SNMP, Modbus or BACnet for interfacing to Network and Building Management
Systems. Also includes support for external environmental sensor support, using Liebert SN Sensors.



Equipment Type


Model Family


Rating (kVA)

20 kVA

Input Voltage


Output Voltage





1 ph


50/60 Hz


In Stock
