1 MW Self Contained Outdoor UPS Trailer –
System to include:

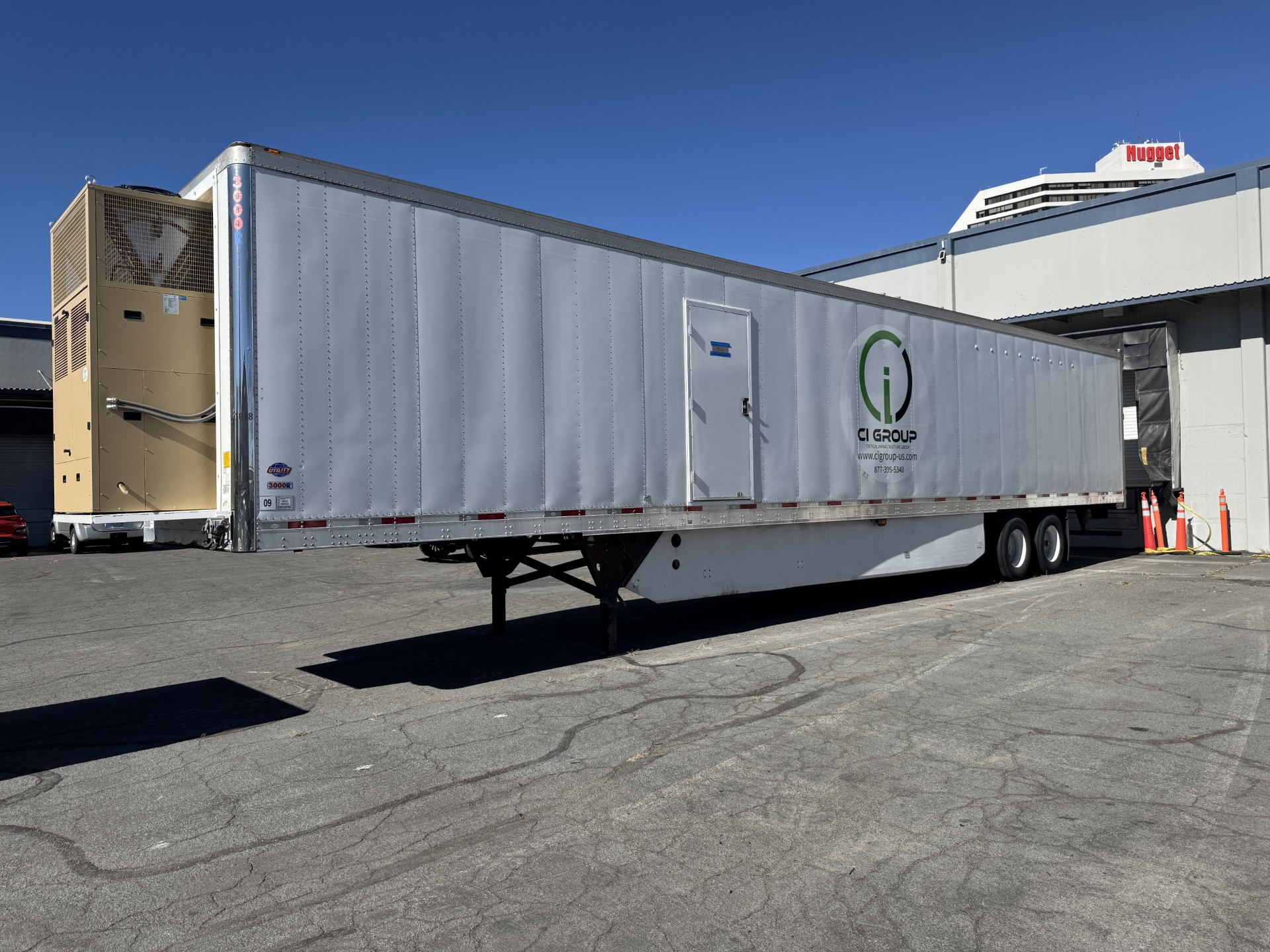

(1) Hyundai Thermo Tech 53’ Insulated Trailer:
Exterior Dry Van Dimensions (estimated): 8’6″‘W x 53”L x 13’6″H
Overall Dimensions with Exterior Mounted HVAC: 8’6″W x 58’L x 13’ 6″H
(1) Input CAM Lock Panel –
Rated: 1600A – 480V – 3PH
(6) CAM Locks Per Phase + (2) Ground – Male Connectors
Connections for Network monitoring included.
(1) Output CAM Lock Panel –
Rated: 1600A – 480V – 3PH
(5) CAM Locks Per Phase + (2) Ground – Female Connectors
Connections for Network monitoring included.

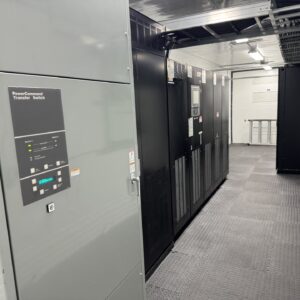

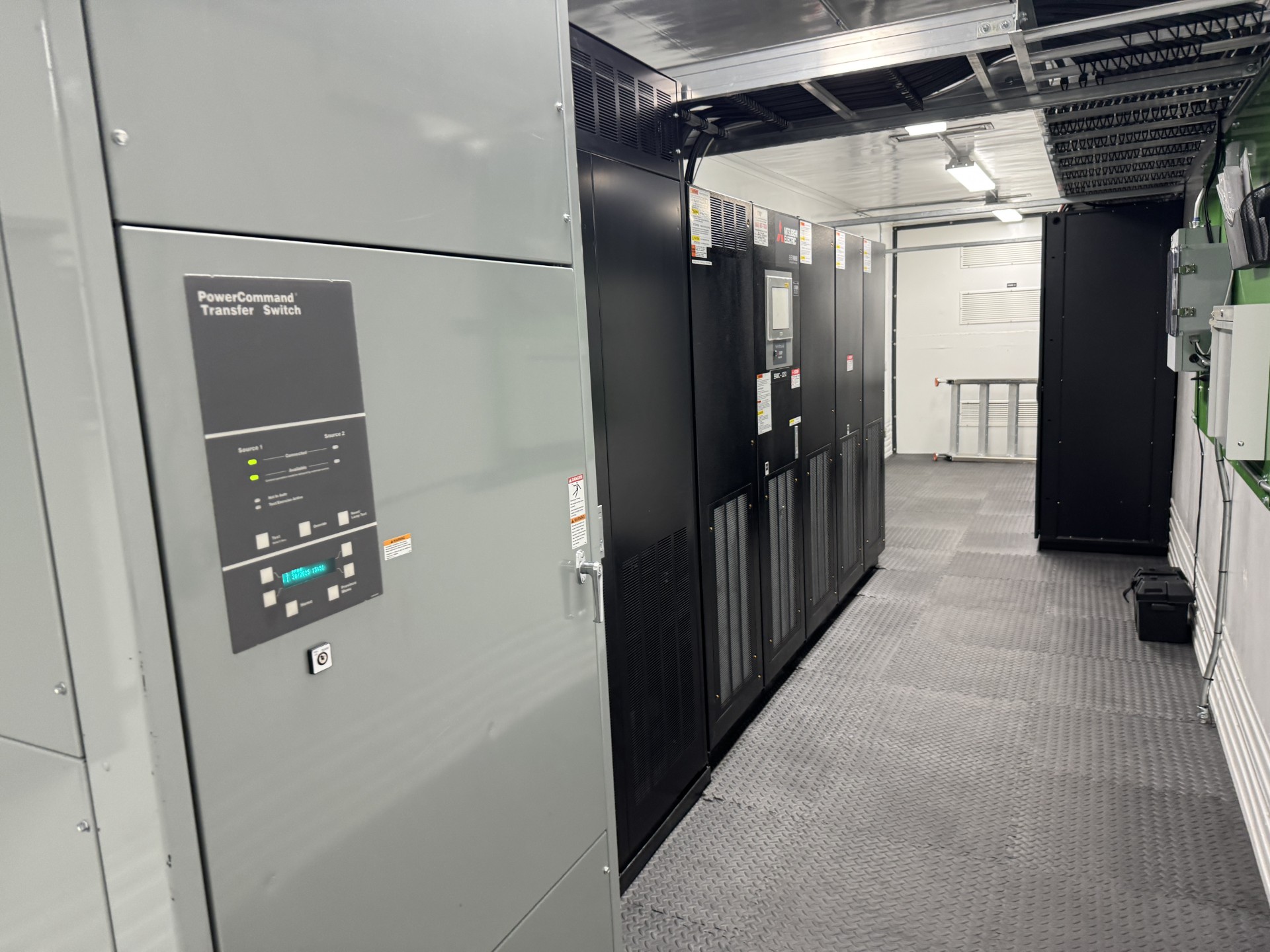

Integrated Switchboard – MDP
(1) 1600AF / 1600AT – BIB
(1) 1600AF / 1600AT – MBP
(1) 1600AF / 1600AT – MIS

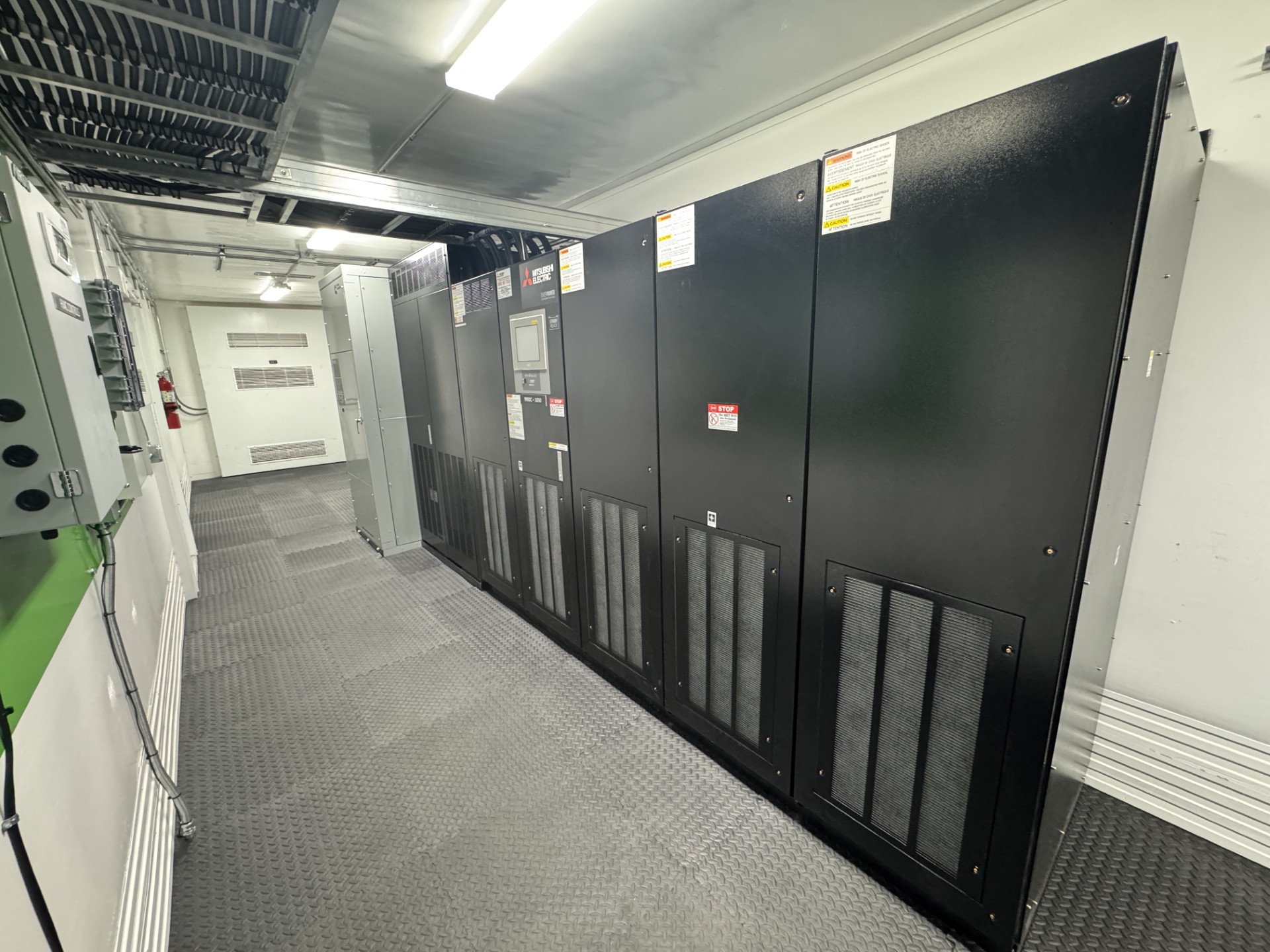

(1) Mitsubishi 9900C – 1050 kVA UPS
Rated: 1050 kVA
Voltage: 480V- 3PH -3W

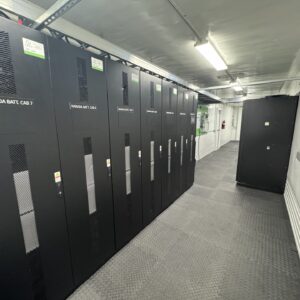

Battery System – 9.5 minutes at full load / 21 minutes at 50% Load
(1) MPLHP5125528-1111411
MPLHP 10 Module, 512VDC LFP Battery System,
Black, Siemens 400A Breaker, 24V UVR, 1AB Aux Contact, DC BMS Power, HMI and System Controller
(6) MPLHP5125528-1011411
MPLHP 10 Module, 512VDC LFP Battery System,
Black, Siemens 400A Breaker, 24V UVR, 1AB Aux
Contact, DC BMS Power
HVAC: N+1 Redundant
(2) Airsys Unicool
Model 28V2B5MR410AAC
Variable Capacity – Bottom Supply
Dual Compressors
System Monitoring:
Wireless with customer approval
